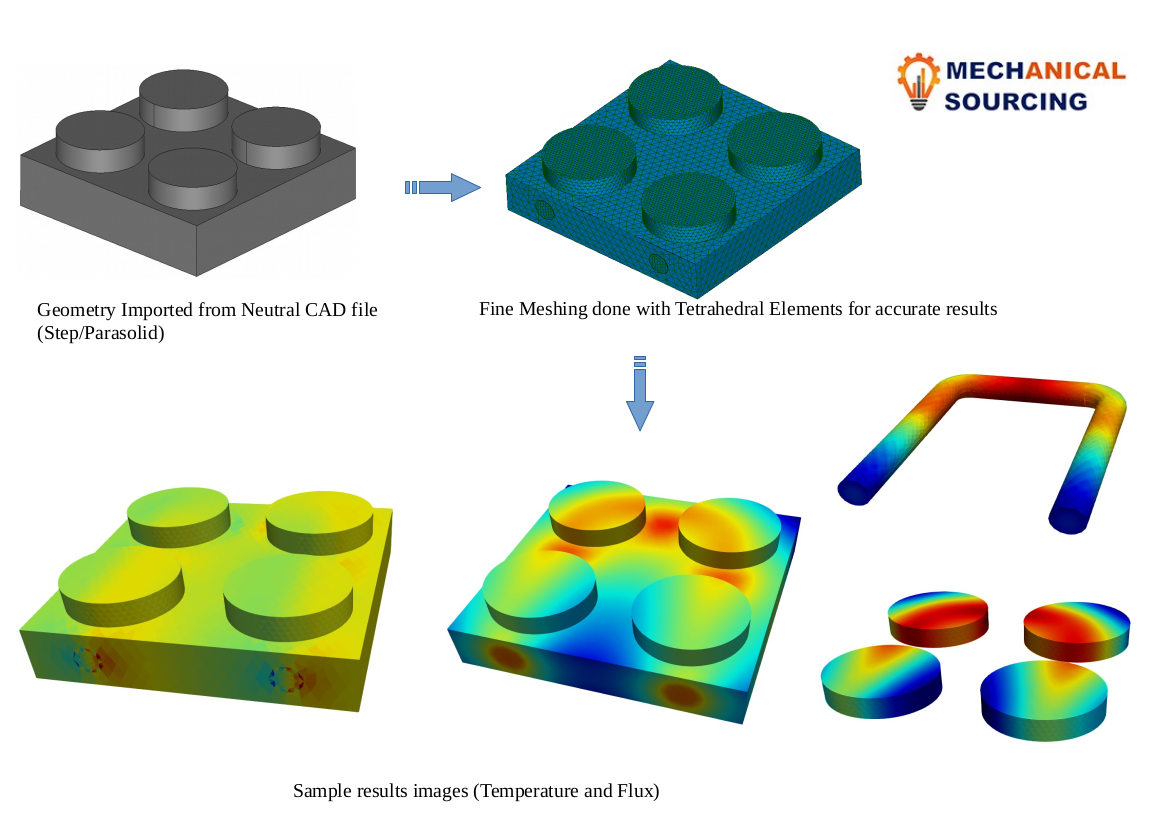

Thermal Analysis of Heater Plate

Project Objective:        Analysis heater plate subjected to thermal loading and suggest design improvement for optimized temperature distribution

Project Challenges:    Meshing for accurate results, defining contact regions between heater plates and coils and applying boundary conditions

Output                    :      A summarized presentation mentioning the problems with respect to existing design and suggesting new routing for heater coil

Software                :      Salome Meca 2019, Code Aster

Video Link             :       https://www.youtube.com/watch?v=SIZtA8ln5vg
